The Ultimate Light Guiding System

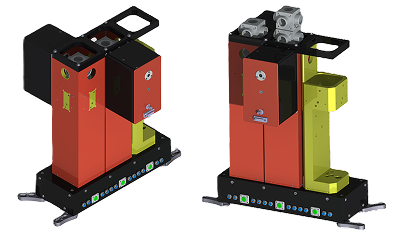

The Light Distribution System (LDS)

Is the highly flexible novel system developed by Space Optics Systemsto merge, split or guide light from various fibered sourcesinto single or multiple simultaneous outputs. The LDS is particularly adapted for calibration usage on ground telescopes and for optical laboratories.

How it works

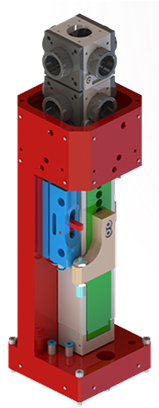

The LDS is based on Light Distribution Modules (LiDiMo). Depending on the number of different sources and combinations possibilities, the LiDiMo can be easily connected together to create a custom, scalable and dedicated solution for each scenario.The Light Distribution Module offers high stable and repeatable optical positioning solution.LiDiMo is based on pneumatic actuator allowing ultra fast and precise optical movements.

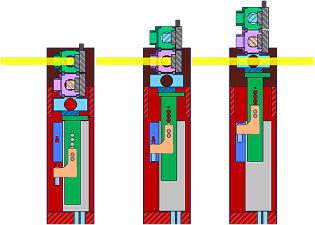

Example of some possible solutions with 3 LiDiMo connected together

Top view with with 3 IN feeding 3 OUT

Top view with with 3 IN feeding 3 OUT

Top view with with 3 IN feeding 3 OUT

Key Characteristics

Operating temperature range : 0-25 °C

Extremely High Repeatability : 0.1 %

Stability over 8h : 0.1%

Number of positions per module : 3

Total transmission : min 50% (depending mostly on the optics transmission)

Positions maximal travel range : 55 mm

Light sources intensity adjustable : up to 3ND with a resolution of 0.01 ND

Each Input and Output can be closed independently :

Fibers connection : FC/PC

Input fibers diameter : up to 1 mm

Output fibers diameter : up to 0.5 mm

Adustment on optics : Yes

Locking system on optics : Yes

Rackable : 19” (depending on the number of Inputs and Outputs)

Control Command : compatible with Beckhoff automates

Air supply : 5 bars

Power supply: 24V/10A

Operating temperature range : 0-25 °C
